Nec conduit fill chart. Type of Wire Conductor Size Conduit Size Inches AWG MCM12 341114112221233124 56. The NEC index cross-references conduit fill as conductor fill. 2 00507 in 2 01014 in 2.
Southwire Conduit Fill Calc By Company Tools. Also a conduit fill chart for EMT and RMC could be found here. 3 00973 in 2 02919 in 2.
See also T Mobile Arena Seating Capacity For Hockey. Pics of. The basic NEC reference is 30017.
Conduit Fill Table. The PVC conduit fill chart fully complies with NEC 2020 chapter 9. There are three criteria for maximum conduit fill provided by the NEC.
Nema Straight Blade Configurations. Of 6 THHN wire. It merely says the number and size of conductors cant be more than will permit heat dissipation and the ready withdrawal of conductors without damaging them.
The NEC does not provide a specific fill number here. Maximum Number of Conductors In Conduit or. 5 Raceway And Box Calculations.
31 for. Conduit Fill Chart Articleshook. 53 for 1 conductor in a conduit.
53 for 1 no. Here d cable is the cables outer diameter and d conduit is the conduits inner diameter. Nec Pipe Fill Chart Emtb.

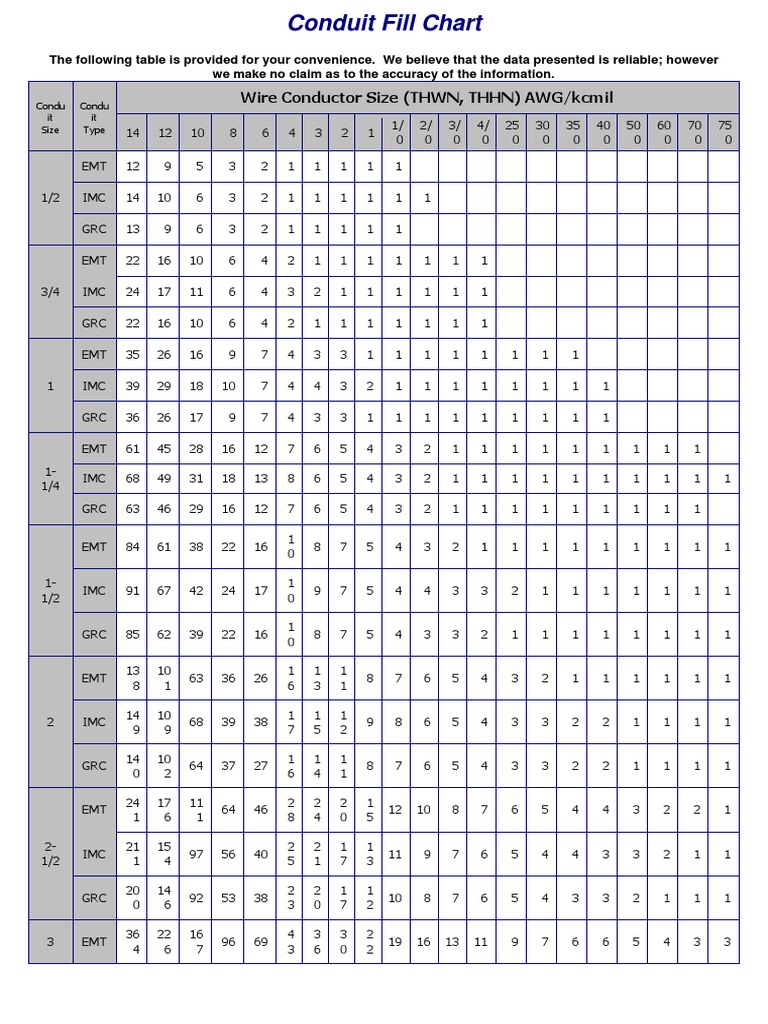

Conduit Fill Tables NEC Table C Conductor Size Awg Kcmil XHHW SIZE 14 12 10 8 6 4 3 2 1 10 20 30 40 250 300 350 400 500 600 750 12 EMT 8 6 5 2 1 1 1 1 1 1 RMC 9 7 5 3 1 1 1 1 1 1 IMC 10 7 5 3 1 1 1 1 1 1 1. Maximum Number of Conductors In Conduit or Tubing. Chapman Electric offers a selection of pipe and.
TW XHHW 14 thru 8 14 9 15 25 446099 142 12 7. See also Create Hive Table From Json Schema. Snyder Conduit Fill Calculations Page 5 of 16 Electrical Metallic Tubing EMT as shown in Table 2 is thin-walled.
Posted on February 13 2017 October 13 2021 by Brandy McNeil. 52 rows NEC CONDUIT FILL CHART. Annex C Conduit And Tubing Fill Tables For Conductors.
Engineering Of Water Systems Well Journal. Pvc Conduit Fill Chart Nec 2017. 40 Fill NEC Maximum 53 Fill 31 Fill Also Okay Three Conductors Figure 3 40 Fill NEC Maximum Four Five Six Conductors Figure 4 40 Fill NEC Maximum 40 Fill NEC Maximum Conduit Types.
Trade Size Inches Wire Type THWN THHN Conductor Size AWGkcmil. 40 for 3 or more conductors in a conduit. Allowable bends in electrical conduit annex c conduit and tubing fill tables 2021 conduit fill chart fillable.
Of 3 THWN wire. The following table provides maximum recommended fill for many standard conduit sizes at the maximum fill ratio specified by the United States National Electrical Code NEC for domains within its scope. Conduit Fill Tables NEC Table C Conductor Size Awg Kcmil THHN THWN SIZE 14 12 10 8 6 4 3 2 1 10 20 30 40 250 300 350 400 500 600 750 2 ½ EMT 241 176 111 64 46 28 24 20 15 12 10 8 7 6 5 4 4 3 2 1 RMC 200 146 92 53 38 23 20 17 12.
Other codes standards or practices may. Nec Conduit Fill Table Rmc. C4 and C8 of the 1996 NEC.
Wire Size Chart Nec 2020. When it is used it is. Guidance is also provided below on how to calculate conduit fill.
Pics of. Cec pipe derating page 2 electrician talk ings wire fill chart if you have four to six 12 awg wires in a conduit what would be the allowable cur carrying capacity percene normal quora conduit fill table why. 31 for 2 conductors in a conduit.
3 rows As NEC 2017 Chapter 9 Table 4. Conduit Fill is the percent of area inside the conduit taken up by the cables. Unled how to size conduit for cable nec 2017 code changes chapter 3 resources calbond 3 wiring methodaterials.
Direct Current Motor Full Load Current. This also assumes no more than two 90 bends between pull points. 1 14 inch RMC Conduit.
01014 00973 153 25 which is well below allowable factor for more than 2 wires 40. The table above is for branch circuit protection and is not designed for motor loads. Posted on July 4 2020 by Eva.
How To Size Conduit For Cable Knowledge Center Essentra Ponents Us. 134 rows Conduit Wire Fill Charts Tables. Nec Conduit Fill Table Xhhw.
Theme created with Theme Matcher. A great tool to help electricians engineers and contractors answer the question What size. Provides quick and easy results for the conduit fill percent per NEC guidelines.
For a mix of wire type and size an online tool to decide conduit fill in percent has been introduced at conduit fill calculation. Multi-conductor cables are counted as a single conductor in accordance with Note 9 to Table 1 of Chapter 9. 5 Raceway And Box Calculations.
