Automotive Fuse Types Chart

Fuses can be divided into two major categories AC fuses and DC fuses. Also comes in a low-profile mini version. There are four main fuse types found in vehicles today.

soaking nuts and seeds chart colts qb depth chart 2019 tide chart wells me mass teacher retirement chart pokemon size comparison chart window header size chart natural gas btu chart watch water resistance chart

However the IEC fuse is slightly different.

Automotive fuse types chart. It is the primary fuse used in the initial era of the vehicle before blade-type fuses were invented. MiniATMAPM Fuses measure 109 36 163 mm 2 to 30 amp. We will discuss each fuse in brief in our article.

There are six primary types of automotive blade fuse available. 32 Models 5a To 60a Original 4s Auto Fuse Japan Pec And Usa Car. A cylindrical fiber tube fuse with threaded ends and ventilation slots designed for the telecom industry.

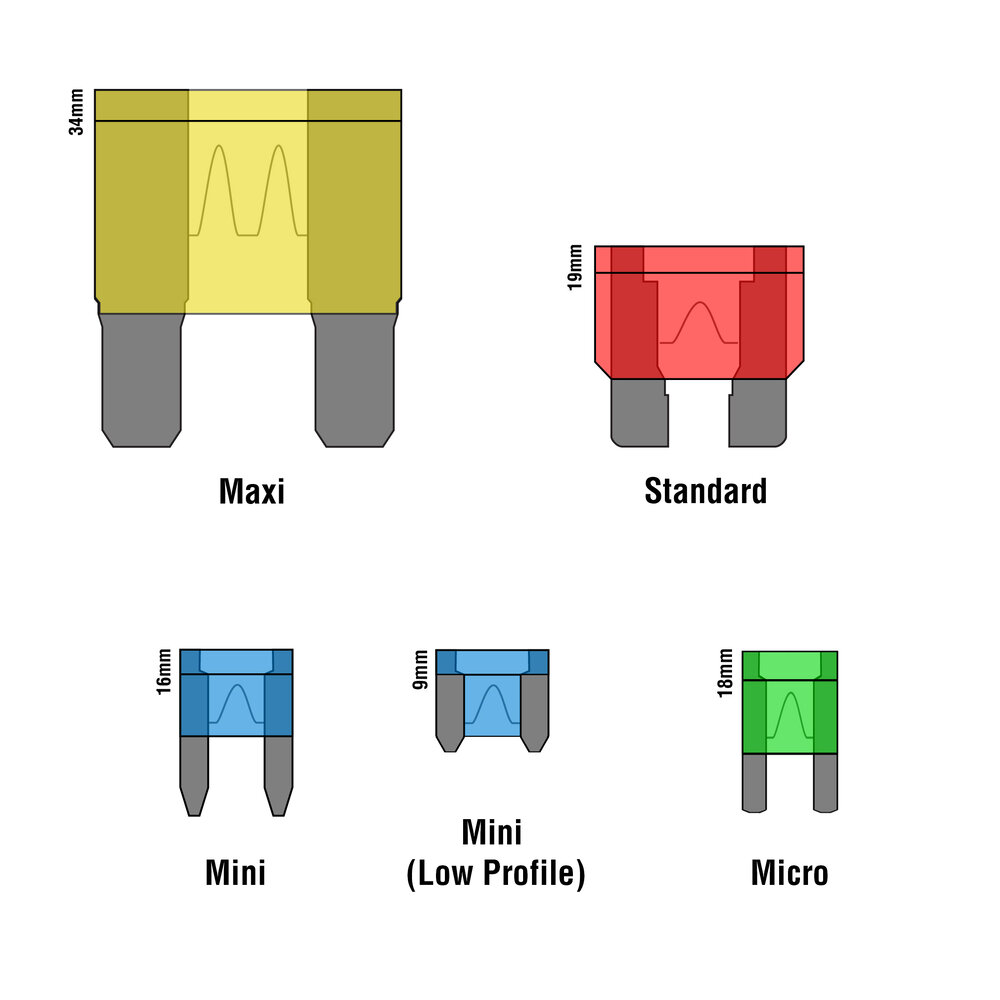

There is also a low profile version of the mini the APS which uses the same universal Amp colour coding system. MaxiAPX These much larger fuses 292 85 343 mm can hold more amps than standard or mini fuses. Micro Mini APM ATM Standard APR ATC ATO and Maxi APX.

Buy 100 Amp Maxi Blade Fuses Online Purple Free Delivery Uk. The terminals do not extend far beyond the main fuse body. 120pcs 7 Types Auto Fuse Blade Assortment Kit With Black Holder.

The largest size fuse shown in the chart is the 5AG or MIDGET a name adopted from its use by the electrical industry and the National Electrical Code range which normally recognizes fuses of 916 x 2 as the smallest standard fuse in use. BOLT-DOWN FUSE SELECTION CHART BF2 SERIES BLACK HOUSING MIDI MEGA ZCASE CLEAR HOUSING BLACK HOUSING HOUSING W RIVIT TYPE Current Rating Additional Information ACTUAL SIZE 30A - 200A Handles inrush currents Battery and alternator protection Ultra-high current protection High current circuit protection Easy blown fuse detection Ignition. This is the most common type of fuse.

The small minis ATM mid-sized regular ATCATO and the large maxis APX. Low-profile mini these are small and compact. There are three common blade fuse sizes.

The below block diagram illustrates the different types of the fuse under each category. Smallest type of blade fuse. The Mini is the most common fuse type based on our observations.

Low-profile Mini Mini Micro2 and ATO. There are 4 main types of fuses. Berkas Electrical Fuses Blade Type Svg Wikipedia Bahasa.

The classic ATC fuse is a plastic blade type. The regular-sized ATC fuse is more common than the ATO. Types of automotive fuses.

The Fast Way To Learn The Different Types Of Car Fuses With Pictures Charts. A glass body cartridge style fuse that is 14 in diameter and 58 in length. Smaller than standard sized fuses.

Comes in 2 prong micro2 and a 3 prong micro3. 5 Models 20a To 60a Original Rectangle Small Type Auto Fuse. StandardATCATOAPRATS Fuses measure 191 51 185 mm 5 to 40 amp.

Every car uses fuses to protect the vehicles wiring and electrical system components. Micro3 these are easily identifiable as they are the only type with three terminals instead of two. There are several automotive fuse types but today were talking about the blade-style fuses found in most modern cars made after 1980.

Keep in mind that there are several different types of blade fuses beyond the standard ATC size too including Micro Mini and Maxi styles. 21 rows Automotive fuses are a class of fuses used to protect the wiring and electrical. Micro2 these are the smallest type characterised by their tall thin shape.

13 rows FUSE TYPE MICRO2 ATO MINI MCASE JCASE MAXI MIDI MEGA PAL Series 0 Series 1 Series 2 Series 5. Bosch or Torpedos Fuse ATS or GBS. 20 to 120 amp.

A ceramic body axial leaded subminiature fuse that is 23mm in diameter and 8mm in length. Each fuse can be color coded with the appropriate amperage rating on top.
